FEATURES & APPLICATIONS
Features
- Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiselling
- Sturdy motor provides high performance and overload protection
- Innovative, long-lasting hammering mechanism
- Includes Hilti Cooltec with active cooling to extend tool lifetime

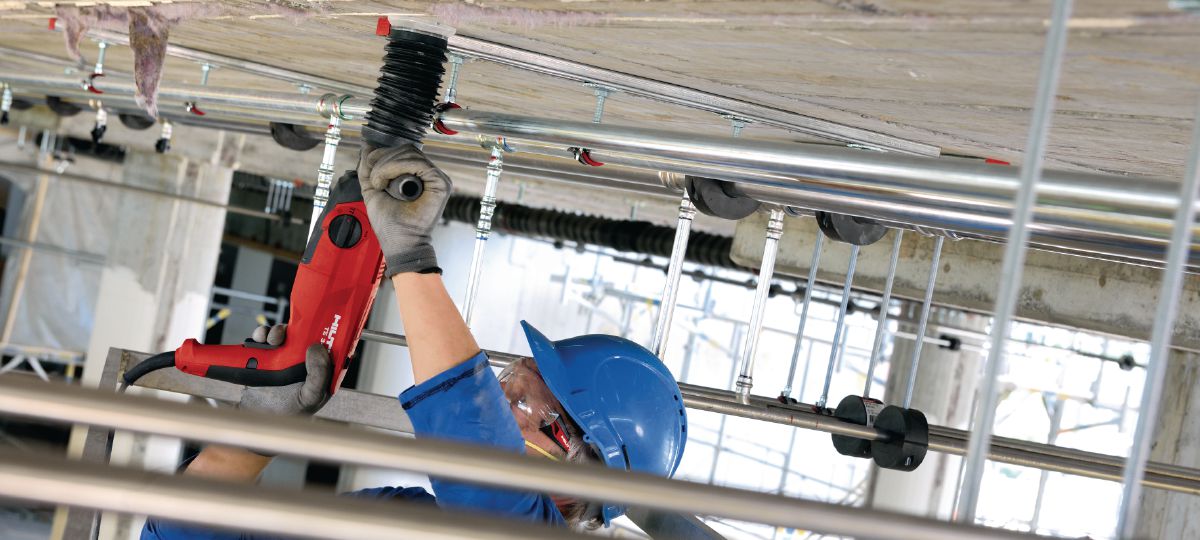

- Optional, easily-attachable dust collector helps protect the operator from falling dust and fragments when drilling overhead
Applications
- Drilling and hammer drilling in concrete and masonry
- Corrective chiselling and light channel chasing in concrete and masonry
- Drilling in wood and steel using the optional smooth-shank chuck adapter
- Cutting socket recesses in masonry
- Driving screws using optional bit holders
PRODUCT INFORMATION
Rotary hammer TE 3-CL 230V box
- Item Number: 2122682
- # of items in Package: 1
TECHNICAL DATA
- Weight according EPTA Procedure 01/2003 without battery : 3 kg
- Optimum hammer drilling range : 6 - 16 mm
- Single impact energy :2.1 J
- Working mode : Chiselling, Drilling, Hammer drilling, Chisel setting
- Hammer drilling diameter range: 5 - 28 mm
- Hammer drilling RPM : 1070 rpm
- Full hammering frequency : 4860 impacts/minute
- Functionality :Chipping, Reverse mode, Depth gauge
- Triaxial vibration value for hammer drilling into concrete (ah,HD) : 14.6 m/s² 1
- Triaxial vibration for chiselling in concrete : 11.2 m/s² 2
- A-weighted emission sound pressure level : 93 dB (A) 3
- Rated input power : 850 W
- Dimensions (LxWxH) : 377 x 88 x 204 mm
