FEATURES & APPLICATIONS
Features
- Quicker and easier installation – no hooks, anchors or drilling

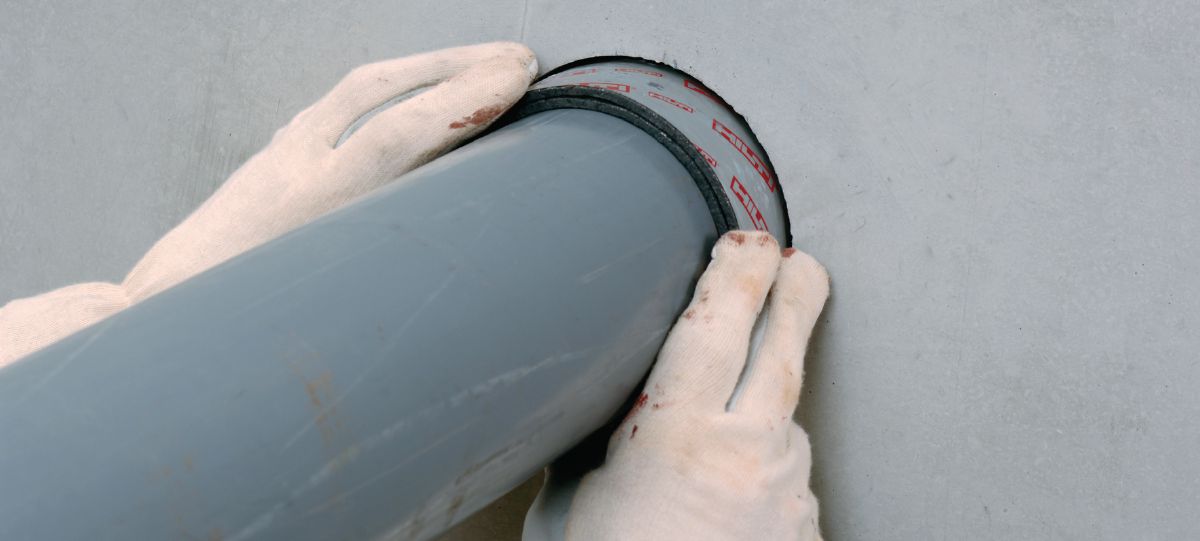

- Installed inside the base material – ideal when space and access are limited
- Endless solution – one product for most penetrant sizes
Applications

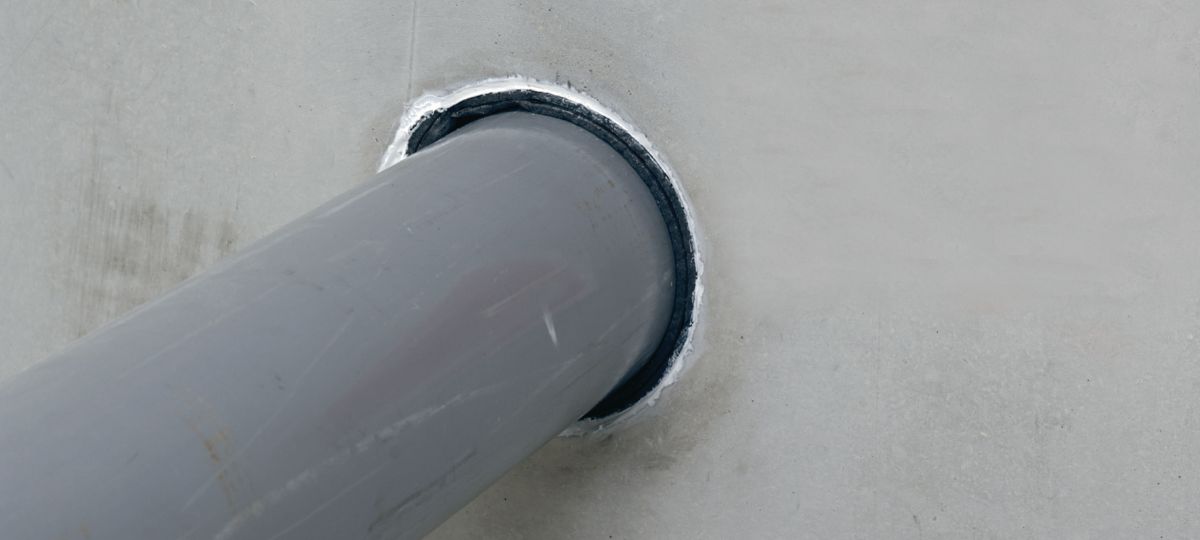

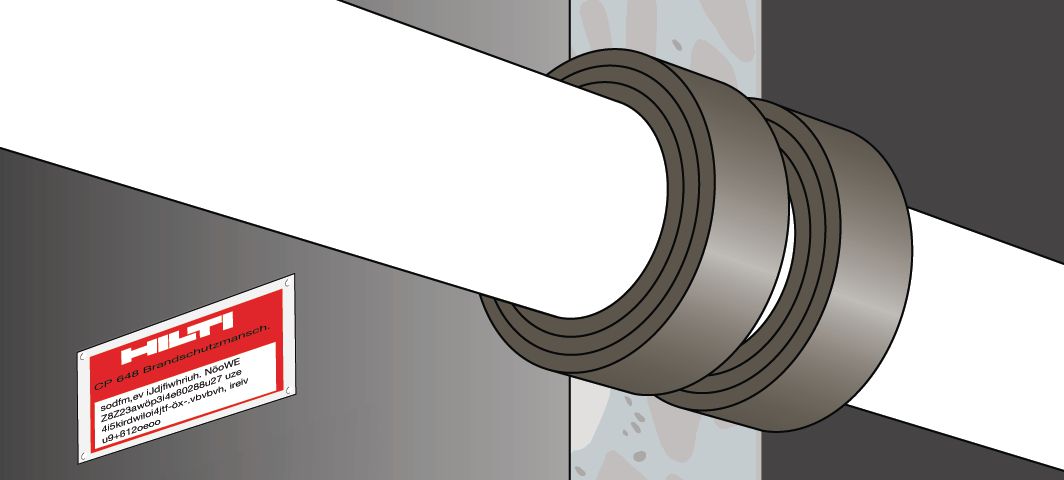

- An intumescent, flexible firestop wrap strip for combustible pipe penetrations
- Concrete, masonry floor and gypsum wall assemblies
PRODUCT INFORMATION
.jpg)
Firestop wrap strip CP 648-E-W45/1.8
- Item Number: 304310
- # of items in Package: 1
TECHNICAL DATA
- Dimensions (LxWxH) :10000 x 45 x 4.5 mm
- Approvals :Z-19.17-1612
- Base materials : Concrete, Drywall, Masonry
- LEED VOC : 7.6 g/l
- Expansion ratio (unrestricted, up to) : 1:19
- Expansion temperature (approx.) : 210 °C
- Can be painted :No
- Length : 10000 mm
- Height : 5 mm
- Product class : Ultimate
- Application temperature range : -5 - 50 °C
- Storage and transportation temperature range : -5 - 50 °C
- Temperature resistance range : -20 - 100 °C
