X-U MX Steel/concrete nails (collated)

No items found.

FEATURES & APPLICATIONS

Features

Galvanised nail for fastening to concrete or steel
Higher application limits, higher ultimate tensile loads
Available in lengths up to 72 mm
Fully-knurled point for increased performance on high-strength steel and hard concrete
Strips of 10 collated nails – for extremely high productivity and easier fastener loading

‍

‍

Applications

Fastening to concrete or steel

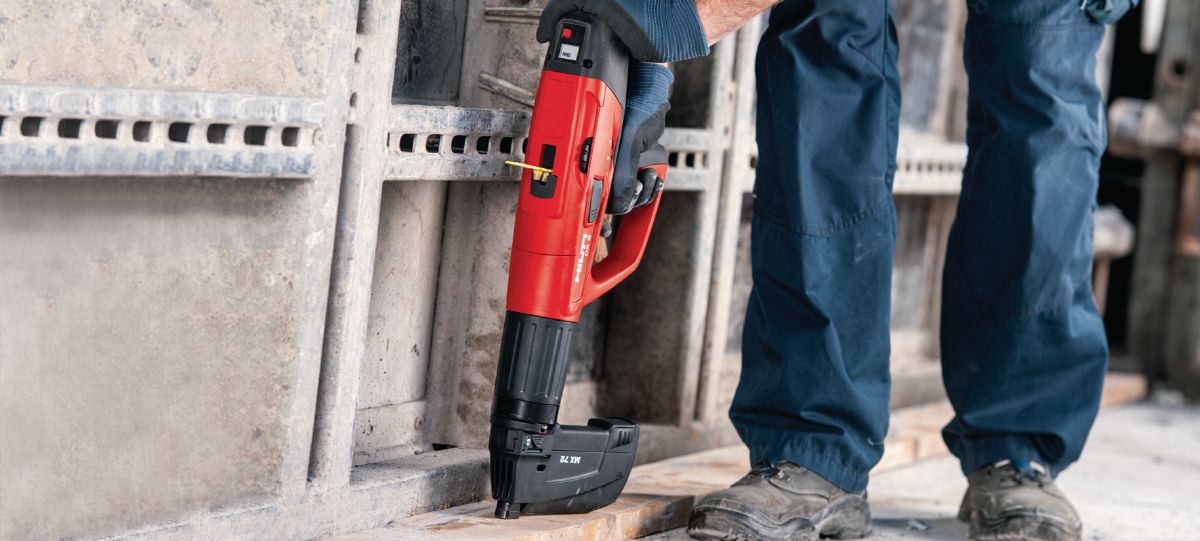

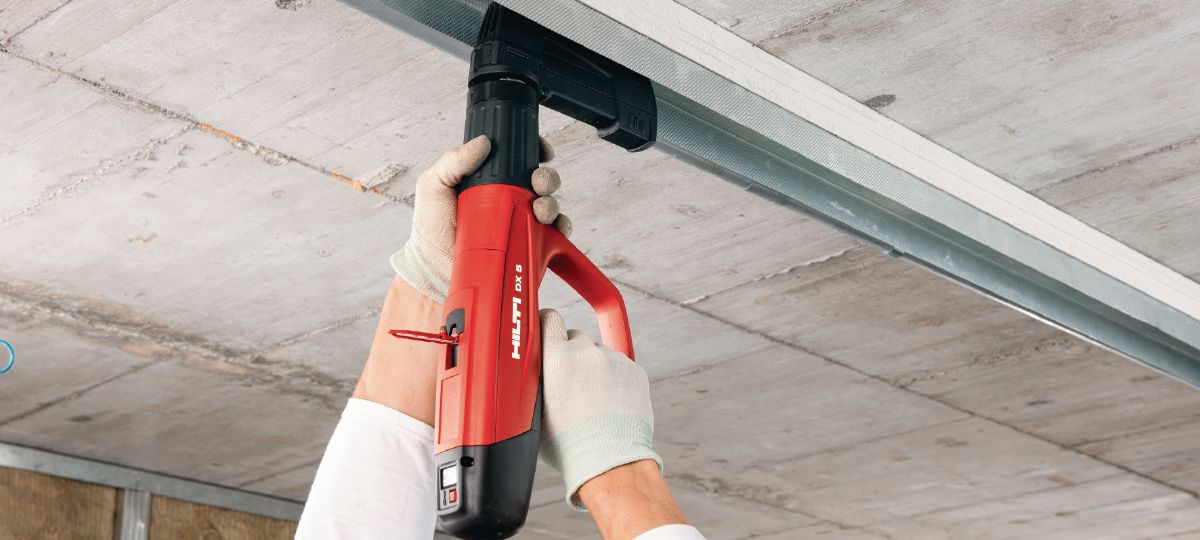

Fastening metal track for plasterboard/dry lining to concrete
Fastening wall ties
Fastening wood to concrete
Setting up formwork and safety barriers

‍

PRODUCT INFORMATION

‍

Universal nail X-U 27 MX

Item Number: 237347
# of items in Package: 1

‍

Request a demo Request a QUOTE CONtact ME

TECHNICAL DATA

‍Base materials : Concrete (hard), Concrete (soft), Masonry, Steel‍
Minimum thickness of base material (concrete) : 80 mm‍
Minimum thickness of base material (steel) : 6 mm‍
Corrosion protection : Galvanised zinc coated <20 µm‍
Environmental conditions : Dry indoor‍
Material : Carbon steel‍
Fastener shank diameter : 4 mm‍
Point type : Ballistic point, knurled‍
Approvals : COLA, DIBt, IBMB, ICC-ES, LR‍
For use with (tools) : DX 351 MX 27, DX 351 MX 32, DX 460 MX, DX 5 MX‍
Product class : Premium

‍
